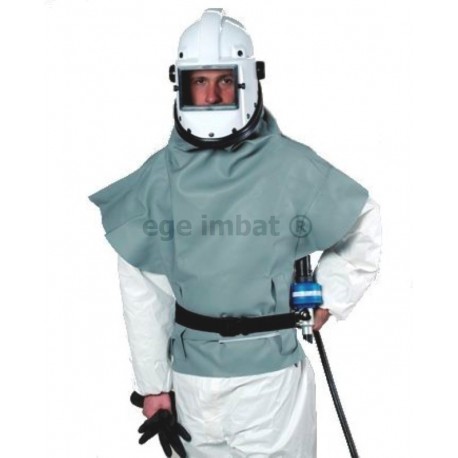

Spasciani ACS 952 Sandblasting Respirators

SBH 13151 Spasciani ACS 952 Sandblasting Respirators

ACS 952 is an isolating, constant flow, compressed air line respirator provided with hood  equipped with frontal protection waistcoat  that grants a perfect protection for the breathing pathways and the parts of the body more likely to be exposed to the mechanical action of the abrasive blast. It is therefore the ideal personal protection device for sand blasting operations.

The presence of the filter silencer EOD55 that reduces the noise to a minimum, the possibility to adjust the flow coming out from the AC 95 regulator and two overflow valves that release the excess air to the ambient, make the use of the ACS 951 very comfortable and effective.

ACS 952 is made of the ACS 952 hood , a corrugated hose type TUR 909, a filter silencer EOD 55 and a flow regulator AC 95.

The ACS 952 hood in shock proof  material is provided with head harness adjustable from size 55 to 61. In the hood a special duct leads the air to skim over the visor, thus avoiding steaming up.  The hood is provided with two exhalation valves protected by special caps. The hood is provided with chin strap, adjustable by means of a sliding buckle, which keeps the hood in position in any work situation, of a double visor  (external part in glass and internal part in polycarbonate)  which avoids grinding of the visor during sandblasting operation.

A waistcoat made of strong fabric, coated with plastic and sewn onto the rubber profile, protects the wearer down to the waist.

The hood is fed by the corrugated hose TUR 909 which draws the air in the breathing zone and that is positioned between the mask and the filter silencer, this last is connected to the flow regulator.

The flow regulator AC 95 is provided with a male quick coupling for the connection to the feeding hose and it delivers to the operator a continuous flow of air that can be regulated by the user acting on the dedicated handle.  The flow regulator is equipped with a low flow alarm which activates when the flow falls below the minimum set and it is mounted on a support belt to enable an easy and comfortable wearing. AC 95 is also provided with a male EN 148/1 screw for the connection of the filter silencer EOD 55.

ACS 952   respirator shall be fed by a compressed air line source delivering air of breathable quality (according to EN 12021) with a pressure between 5 and 6 bar and with a minimum flow for each operator of  500 l/min.

The flow regulator  is connected to the air line by a compressed air feeding hose (8x17) available in different lengths and provided with quick couplings for the connection to the air line outlet and to the flow regulator inlet.

Quick couplings are available in two versions: Spasciani (standard) and Eurocoupling (on demand), this last is compatible with the most widely used coupling for air line.

Hoses shall be chosen and ordered separately making sure to have ordered the same coupling on the AC 95 and on the hoses

The respirator is supplied with graduated flow meter for checking the flow.

Technical data

Flow regulator AC 95: flow can be set between 165 and 230 l/min, alarm for flow below 120 l/min. Available equipped with the standard Spasciani male quick coupling (P/N 932100000) or with Eurocoupling  quick coupling (P/N 9321000CJ)

Filter silencer: reduces the noise down to 75 dB

Corrugated hose TUR 909:  length 90 cm.

Compressed air feeding hose 8x17 : available in different lengths (max 50 m) and with standard Spasciani or Eurocoupling quick couplings.

Classification and marking

Certified as Class 4B device to  EN 14594:2005, it complies with directive 89/686/EEC (PPE)

Materials

ACS 952 Hood:

Cap: rigid shock proof ABS

External visors: Transparent Glass

Internal visors: Clear polycarbonate

Head harness: Polyester

Waistcoat: Polyester fabric coated with TPE

Valves: Natural rubber membrane with polycarbonate coverc

AC 95 flow regulator: aluminium alloy  nickel plated

EOD 55 filter silencer: Made of shockproof polypropylene and filtering material (filtering paper and carbon)

Corrugated hose:  Moulded in polyurethane with screwed plastic connections

Compressed air feeding hoses:   non toxic rubber, fitted with safety quick connectors.

Storage

Store at temperatures between -20 and +50 °C and RH <80%

Weight

2,5 Kg approximately

Dimensions/packing

The set is packed in a carton box dimensions :  380 x 275 x 290 mm
